GL-1600 CCD

GL-1600 CCD

工業用超高解析度5440X3060, 16MegaPixel。
Sony 1/1.1.”Sony Color sensor
適用於高階工業用顯微鏡，NIKON ，OLYMPUS金相顯微鏡或工具顯微鏡。
/
/

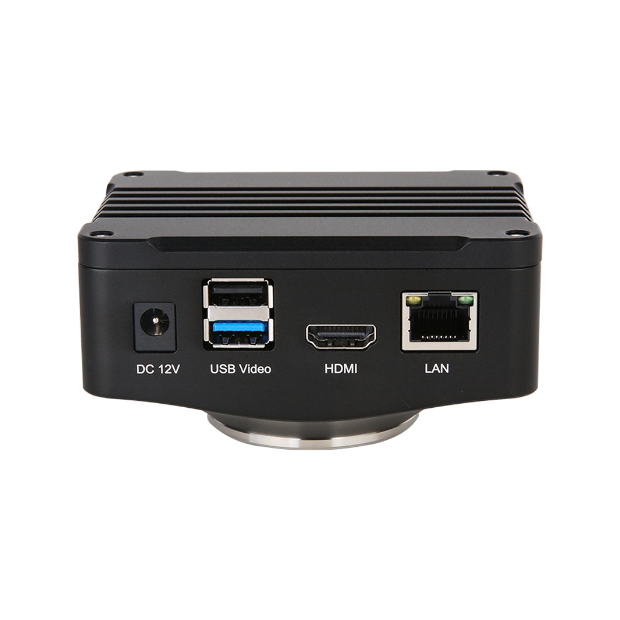

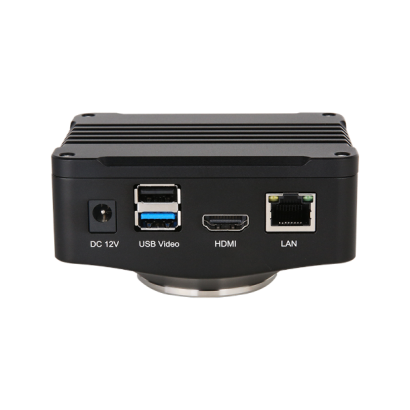

  • GL-1600-2.png

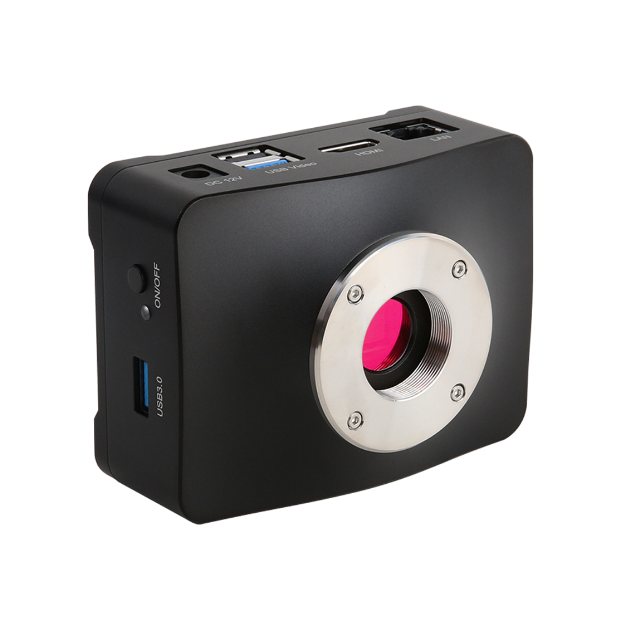

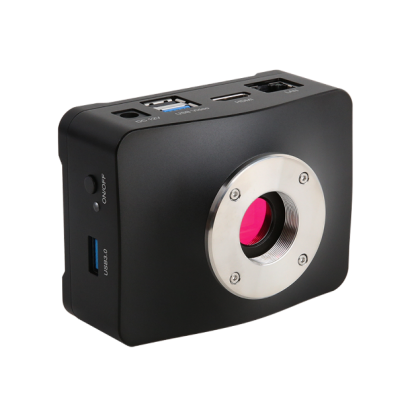

  • GL-1600-.png
詳細介紹

GL-1600 Specification for HDMI 2.0 Output
Sensor Sony 1/1.1.”Sony Color sensor
Resolution 5440X3060, 16MegaPixel
Pixel Size 2.4X2.4 um
FPS 3840X2160@30FPS
UIOperation With USB Mouse
Image Capture High Speed in SD Card
Video Record 4K 30fps in SD Card
Interface HDMI 2.0 / USB / LAN /
Camera Control Panel Including Exposure, Gain, White Balance, ColorAdjustment, Sharpness and Denoising Control
Toolbar Including Zoom, Mirror, Comparison, Freeze,Cross, Browser,MeasuringFunction
Overall Dimensions
Width x Depth x Height            78 mm x 70 mm x 92mm
Shipping Weight                  0.47 kg
