OLYMPUS-STM-6 工具顯微鏡,

OLYMPUS-STM-6 工具顯微鏡,

OLYMPUS-STM-6 Industrial microscope system

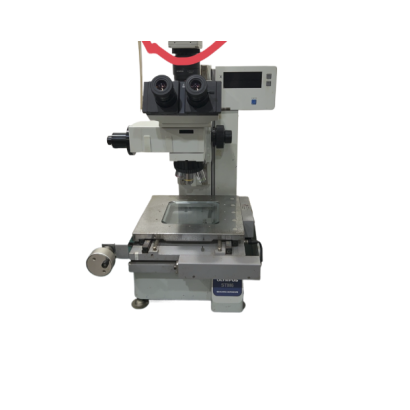

一， Olympus STM-6 Industrial microscope
(Second hand, used 5~7 years)
1. Microscope body standard STM6 model.
2. Manual two axes, moving stroke 100*100 (mm), platform size: X, Y 270*260 (mm).
3. Z-axis movement height is 100mm.
4. Original two-axis optical ruler, including optical ruler display, resolution 0.0005mm
5. Standard upper and lower LED lights.
6. Three-eyed head
7. Binocular eyepieces 10X*2
8. 含上上，下偏光。

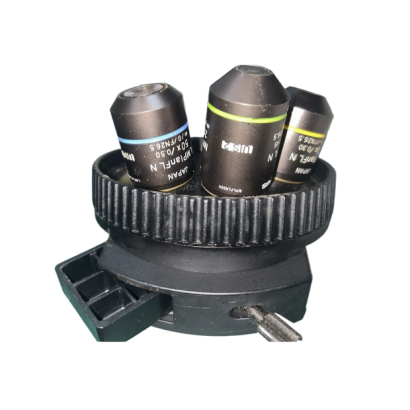

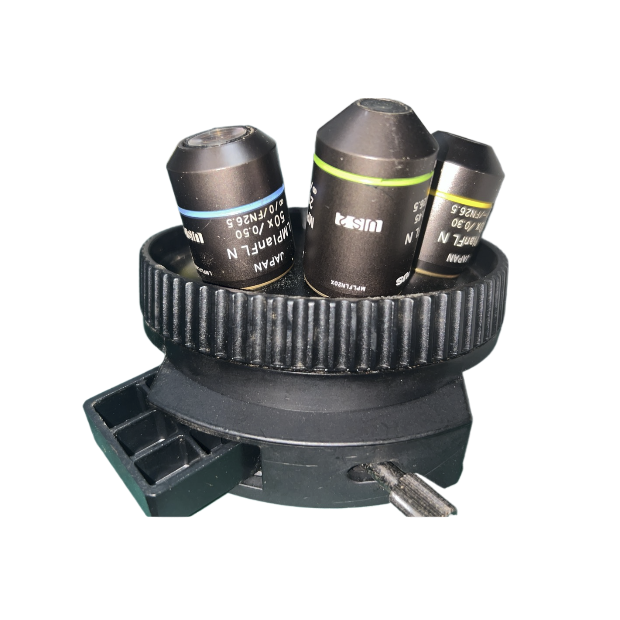

9. Objective lens
Plan FLN 5X，Plan FLN 10X Plan FLN 20X，LM Plan FLN50X.
10. Up and down light.
二， Image measurement software Aim-3000 Image analyzing software
1. 2 million pixel CCD
2. Measuring geometries: Point, line, circle, angle, distance, irregular geometry, ellipse, etc.
3. Coordination transformation: Automatically define working piece coordinates.
4. Manual measurement: User defined commands allow the instrument measure.
5. Tolerance comparison: Instantly show up the disqualified region.
6. Auto edge detection
7. Rectify image distortion and auto-compensation.
8. Manual focus auxiliary tool.


三，GX4K CCD
GX4KWideSpecification for HDMI 2.0 Output
Sensor Sony 1/1.2.”SonyColor sensor
Resolution 3840X2160, 8MegaPixel
Pixel Size 2.9X2.9um
FPS 3840X2160@60FPS
Sensitivity 2188mV
UIOperation With USB Mouse
Image Capture High Speed in S
/
/
  • STM-6-fotor.png
  • OLYMPUS物鏡-fotor-.png
詳細介紹
OLYMPUS-STM-6  Industrial microscope system
  • Olympus STM-6 Industrial microscope                  (Second hand, used 5~7 years)
  1. Microscope body standard STM6 model.
  2. Manual two axes, moving stroke 100*100 (mm), platform size: X, Y 270*260 (mm).
  3. Z-axis movement height is 100mm.
  4. Original two-axis optical ruler, including optical ruler display, resolution 0.0005mm
  5. Standard upper and lower LED lights.
  6. Three-eyed head
  7. Binocular eyepieces 10X*2
  8. 含上上，下偏光。
  9. Objective lens     Plan FLN 5X，Plan FLN 10X Plan FLN 20X，LM Plan FLN50X.
  1. Up and down light.
  • Image measurement software Aim-3000 Image analyzing software
  1. 2 million pixel CCD
  2. Measuring geometries: Point, line, circle, angle, distance, irregular geometry, ellipse, etc.
  3. Coordination transformation: Automatically define working piece coordinates.
  4. Manual measurement: User defined commands allow the instrument measure.
  5. Tolerance comparison: Instantly show up the disqualified region.
  6. Auto edge detection
  7. Rectify image distortion and auto-compensation.
  8. Manual focus auxiliary tool.
三，GX4K CCD
GX4KWideSpecification for HDMI 2.0 Output
Sensor      Sony 1/1.2.”SonyColor sensor
Resolution        3840X2160, 8MegaPixel
Pixel Size 2.9X2.9um
FPS  3840X2160@60FPS
Sensitivity        2188mV
UIOperation     With USB Mouse
Image Capture High Speed in S
