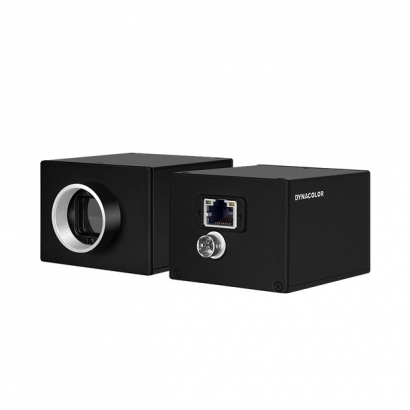

SWIR紅外線相機

SWIR紅外線相機

新研發的SWIR影像感測器可同時感測400nm到1700nm 的光譜波段，且在波長為1200nm時達到QE值峰85%。
透過最新研發的製程與設計，這款感測器大為改善影像均勻度，並降低壞點的產生。還可縮小像素尺寸，使影像在VGA格式下可達到1.3M的解析度。
SWIR紅外線相機
/
詳細介紹
The new developed SWIR image sensor is capable to sense from 400nm spectral
to 1700nm spectral simultaneously, and the max 85% QE is achieved at 1200nm.
Through the new developed manufacturing process and design, this new sensor
reduces the defective pixels and improve the uniformity greatly. It also enables
us to reduce the pixel size to achieve 1.3M resolution from VGA format.
Latest Sensor Technology
With the USB3.1 Gen1 super speed interface, FB Series provides high speed
image transferring capability.
Super Speed USB 3.1 Gen1
The SenSWIR logo is trademark of Sony Corporation
Features
• SONY Visible + SWIR Image Sensor
• Global Shutter
• 1.3M resolution
• External Trigger and Software Trigger
• Trigger with minimum latency and jitter
• Easy integration by API library
• Accurate clock synchronization
• Extensive firmware features
• Onboard frame buffer

SWIR-1.3M CCD
Model                  FB-W2-M
Sensor                 Sony IMX990
Sensor                 Size 1/2”
SensorTechnology        SWIR Global Shutter, TEC Included
Resolution(pixels)        H x V= 1280 x 1024 (1.31M)
Pixel Size               5 μm
System Clock            74.25MHz
Frame Rate             120 @ 8-bit
Read-out modes
                      Full – 1280 x 1024 ROI – with X offset and width in 2-pixel
                      steps,with Y offset and height in 2-line steps



Traditional SNR             TBD
Interface                 USB 3.1 Gen1
Video Output Format        8, 12 bit
Gain                     0dB ~ +42dB
Synchronization            hardware trigger, software trigger, free-run
Trigger Input              trigger source, opto-isolated, GPIO, software
Trigger modes             exposure mode, timed, trigger width
ElectronicShutter          13 μs to 29.999991 sec
PowerRequirements       8~24VDC or 5V via USB3
PowerConsumption        10W
Lens Mount              C Mount
Dimensions              W=58mm, H=44mm, L=50mm
Weight                  187g
OperationTemperature     0⁰~50⁰C
StorageTemperature       TBD
Humidity                20 – 80%, non-condensing

最新研發的影像感測器技術
新研發的SWIR影像感測器可同時感測400nm到1700nm 的光譜波段，且在波長為1200nm時達到QE值峰85%。
透過最新研發的製程與設計，這款感測器大為改善影像均勻度，並降低壞點的產生。還可縮小像素尺寸，使影像在VGA格式下可達到1.3M的解析度。
目前有IR- 780nm, IR-850nm, IR-940nm, IR-1100nm,IR-1300nm 之LED光源可以實際測試。
